LTPBR V2 Design Protocol
The LTPBR V2 Design Protocol is used to develop conceptual restoration plans. It helps users visualize:
- Proposed restoration structures and their spatial & temporal distribution.
- Anticipated gemorphic & hydraulic changes to the riverscape.
- Complex objectives for multiple structures.
Essentially, the protocol allows restoration designs to convey the location, orientation, type, and expected hydrogeomorphic response of proposed structures. Users can create multiple designs to represent different phases of a project or to show various potential outcomes. Finally, the protocol allows users to digitize important riverscape features that might affect project logistics or influence the design itself.
Protocol Summary
| Attribute | Value |
|---|---|
| Name | LTPBR V2 Design Protocol |
| Status | Production Grade |
| Version | 1.0 |
| XML URL | https://github.com/Riverscapes/RiverscapesXML/blob/master/QRiS/protocols/design_protocol.xml |
| Citation | Weber N., Wheaton J.M., Shalcross A., Al-Chokhachy R, Bailey P., Bartelt K., Bennett S., Bouwes B., Bouwes N., Gilbert J., Dickard M., Heitke J., Jordan C., Glassic H., MacFarlane W.W., Miller S., Saunders C., Whitehead K. 2024. Low-Tech Process-Based Restoration Design and Monitoring Protocol: Standard Methods for Developing Project Designs and Assessing Riverscape Health. Version 2.0. Prepared by Anabranch Solutions and Utah State University Riverscapes Assessment and Monitoring Lab. Prepared for the Bureau of Land Management. Logan, UT. 81 pp. DOI: 10.5281/zenodo.13769899 |
| Author | Nick Weber |
Layers
The protocol uses seven layers to organize different aspects of a restoration design planning. These layers represent riverscape observations, structure locations, complex extents, and Zones of Influence (ZOI).
- Structure locations can be digitized as either points or lines, depending on user preference or knowing specific details like exact geometry or structure length.
- Observations are digitized as points, lines, or polygons to highlight different feature’s location, orientation, spatial distribution, or key attributes.
- Complex extents and ZOIs are digitized as polygons to illustrate the area influenced by a single structure or group of structures.

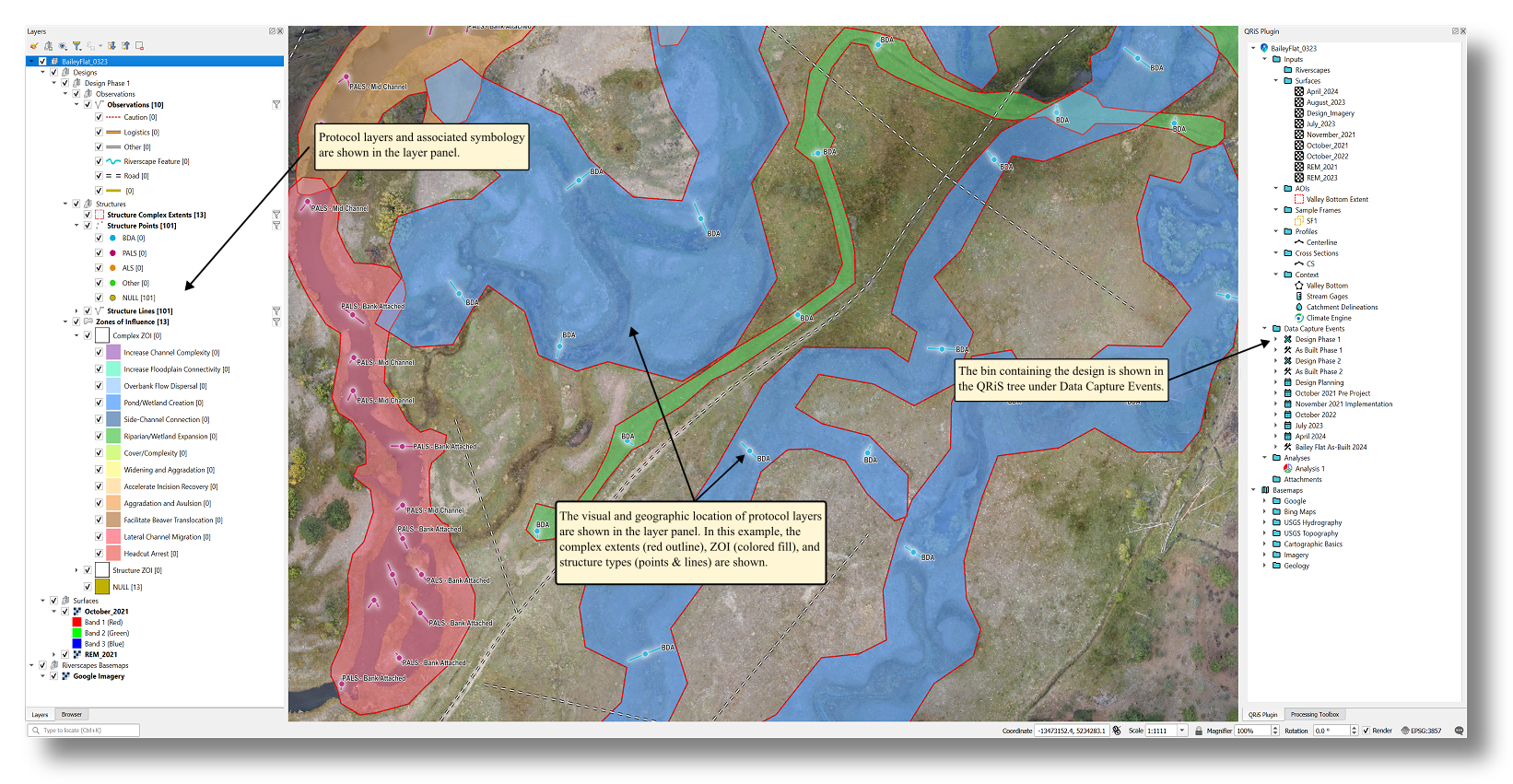

For a visual example, refer to the graphic below.
Observations (Point, Line, Polygon)
Description: highlight key valley bottom features and other important critical considerations that influence the restoration design
| Attribute | Feature Class | Description |
|---|---|---|
| Logistics | Point, Line, Polygon | Used to provide project annotations such as material staging locations, parking areas, camping, etc…. |
| Riverscape Feature | Point, Line | Any riverscape feature that might be important to make note of in a design that might provide opportunities or risks. It is especially important to mark those that were observed in the field but hard to detect using aerial imagery. |
| Design Considerations | Point | A feature or observation that should be considered in an LTPBR design, best clarified by including notes about how the featured might be incorporated into an LTPBR design. |
| Building Materials | Point, Polygon | Ideal areas for harvesting materials to be used in structure construction. |
| Photo Observation | Point | Photo observations made in the field. |
| Caution | Point, Line, Polygon | Any feature that deserves caution, especially for the safety of construction or monitoring crews. |
| Infrastructure | Polygon | Any anthropogenic infrastructure in the riverscape that is important to be aware of or that might be at risk. |
| Road | Line | Access roads to the construction site as well as designated routes on the riverscape where roads may not currently exist. |
| Other | Point, Line, Polygon | Other features that may be relevant to LTPBR planning, design, or implementation. |
Structures (Point, Line)
Description: locations of design structures as points or lines. Points show location only, while lines also give orientation & length measurement of structure.
| Attribute | Structure Class | Description |
|---|---|---|
| ALS | Wood Accumulation | Assisted log structure being a placed woody debris accumulation that does not include posts. |
| ALS - Bank Attached | Wood Accumulation | ALS built extending from the bank towards the channel. |
| ALS - Bank Blaster | Wood Accumulation | An ALS oriented to enhance bank erosion. |
| ALS - Channel Spanning | Wood Accumulation | ALS built across the entire channel from bank to bank. |
| ALS - Rhino | Wood Accumulation | ALS built to the rhino structure design specification. |
| BDA | Beaver Dam Analog | The general term describing a semi-permeable – channel-spanning structural element designed to mimic the form and function of a natural beaver dam. |
| BDA Postless | Beaver Dam Analog | A BDA constructed without the use of posts driven into the streambed that would be used to add stability to vegetative fill material. |
| Bag Plugs | Vegetation Production | Structural treatment that uses bags made up of organic material, usually burlap, that can be filled with sediment and placed. Bag plug structures often mimic vegetative mases that might sluff into the channel. |
| Fell Tree | Wood Accumulation | Strategic felling of a tree within a riverscape. |
| Floodplain BDA | Beaver Dam Analog | A BDA structure constructed on floodplain surfaces, i.e., not build in an existing active channel anabranch. |
| Floodplain LWD | Wood Accumulation | Placement of any large woody debris on the floodplain. |
| Full Tree | Wood Accumulation | Placement of an entire tree whether fell, grip hoisted or positioned using another means. |
| Grip Hoist Tree | Wood Accumulation | A tree that has fallen or that could be fell and then repositioned as a structural element using a grip-hoist. |
| Headcut Treatment | Other | Any structural treatment intended to arrest headcut progression. |
| Leaky Dam | Wood Accumulation | A channel spanning accumulation of smaller woody material with a high degree of porosity. |
| One Rock Dam | Zeedyk Structure | A grade control structure build with a single layer of rock designed to stabilize the bed of channel by increasing roughness. |
| PALS | Wood Accumulation | A post – assisted log structure, general term for a structural treatment constructed of woody debris secured in an accumulation by driving posts into the stream channel or floodplain. |
| PALS - Bank Attached | Wood Accumulation | PALS that are attached to the margin (bank) of the active channel. Generally intended to direct flow away from the attached bank and potentially encouraging bar formation and lateral erosion and/or migration of the active channel. |
| PALS - Bank Blaster | Wood Accumulation | PALS that are oriented to direct flow into a bank to enhance rates and magnitudes of bank erosion. |
| PALS - Channel Spanning | Wood Accumulation | PALS build with sufficient material to span an active channel. Generally intended to enhance channel aggradation rates and/or encourage floodplain connectivity. |
| PALS - Constriction Jet | Wood Accumulation | PALS that are constructed to direct flow into another non-erosive surface (boulder or armored bank) to enhance rates of bank or bed erosion. |
| PALS - Left Bank Attached | Wood Accumulation | A left bank attached PALS. |
| PALS - Mid Channel | Wood Accumulation | PALS built mid-channel, generally intended to enhance topographic complexity and bar formation. |
| PALS - Rhino | Wood Accumulation | A specific PALS recipe used in large streams with high stream power. The structure is built to maximize contact with the stream bed and has a narrow upstream profile extending into a thick base downstream much like the horn of a rhino. |
| PALS - Right Bank Attached | Wood Accumulation | Right bank attached PALS. |
| Post and Brush Plug | Vegetation Production | Densely packing small vegetation around rows of posts driven into the channel to form a channel spanning dam-like structure. |
| Postline Wicker Weave | Beaver Dam Analog | A variant of a BDA in which woody branches are woven between posts in a fashion similar to wicker furniture construction. Produces a flat dam structure with a thin longitudinal profile. |
| Primary BDA | Beaver Dam Analog | A large BDA that is generally designed and placed to have the greatest hydrologic and geomorphic impact. ‘Primary’ comes from beaver complexes that commonly contain one or more large pond-forming dams that are surrounded by smaller secondary dams. |
| Rhino | Wood Accumulation | The structure is built to maximize contact with the stream bed and has a narrow upstream profile extending into a thick base downstream much like the horn of a rhino. |
| Secondary BDA | Beaver Dam Analog | In a complex of BDA structures, secondary BDAs are often constructed downstream a Primary BDA to dispute gradient or within non-primary or overflow channels. |
| Sedge Plugs | Vegetation Production | Cutting densely packed bricks of earth that are held together by sedges into the active channel spanning structure. |
| Spreaders | Zeedyk Structure | A rock-lined depositional area designed to disperse channelized flow and restore sheet flow. |
| Strategic Felling | Wood Accumulation | Felling of trees into the channel or floodplain. |
| Tight PALS (BDA without sod) | Wood Accumulation | A channel spanning PALS built of small woody material. Similar but more porous than a typical BDA. |
| Tree Dam | Wood Accumulation | A fell tree intended to act as a channel spanning dam, may have additional vegetative material, sediment, or sod additions to further decrease porosity. |
| Tree Plug | Wood Accumulation | Using a single large fell tree to create a channel spanning dam-like structure. |
| Vanes | Zeedyk Structure | An in-channel structure usually constructed of posts and designed to induce meandering and point formation. |
| Wicker Weirs | Zeedyk Structure | A specific PALS recipe used in large streams with high stream power. The structure is built to maximize contact with the stream bed and has a narrow upstream profile extending into a thick base downstream much like the horn of a rhino. |
| Wood Jam | Wood Accumulation | Analogous to ALS being a placed accumulation of woody material that does not include driven posts. |
| Zuni Bowl | Zeedyk Structure | An in-channel headcut control structure composed of rock-lined step falls and plunge pools intended to arrest the progression of headcuts. |
Structure Complex Extents (Polygon)
Description: polygon that defines an area where multiple structures are designed to work together to achieve a specific, complex objective.
Zone of Influence (Polygon)
Description: anticipated areal effect that complex (i.e., multiple structures) or individual structure will influence
Complex ZOI
| Attribute | Description |
|---|---|
| Increase Channel Complexity | Diversify flow patterns and increase geomorphic unit diversity |
| Increase Floodplain Connectivity | Elevate water table to establish hydrologic connectivity with floodplain |
| Overbank Flow Dispersal | Force flow over existing river banks onto floodplain |
| Pond/Wetland Creation | Create series of ponds or wetlands behind structures |
| Side-Channel Creation | Divert flow from main channel into newly formed side-channels |
| Riparian/Wetland Expansion | Enhance existing riparian or wetland conditions to facilitate habitat expansion |
| Cover/Complexity | Enhance riparian vegetation cover or complexity |
| Widening and Aggradation | Erode channel banks to widen channel and increase sediment deposition |
| Accelerate Incision Recovery | Force channel widening to halt channel incision |
| Aggradation and Avulsion | Accelerate bank and bar formation to force channel into new pathways |
| Facilitate Beaver Translocation | Enhance habitat and flow conditions suitable for beaver reintroduction |
| Lateral Channel Migration | Increase channel sinuosity to diveristy geomorphic conditions |
| Headcut Arrest | Stabilize active headcuts or prevent headcut formation |
Structure ZOI (Hydraulic)
| Attribute | Description |
|---|---|
| Eddy | Circular vortex formed by structural obstruction of flow paths |
| Splitting Flow | Flow separation by structural obstruction |
| Shunting Flow | Flow diverted to specific pathway by structure |
| Ponding Flow | Pooling of flow behind structure |
| Overflow | Flow that exceeds the capacity of the channel |
| Constriction Jet | Flow constricted to narrow area by structure |
| Divergent Flow | Flow that diverges or spreads out by structural forcing |
Structure ZOI (Geomorphic)
| Attribute | Description |
|---|---|
| Erode Bank | Erosion of exisiting channel bank |
| Erosion from Return Flow Headcut | Headcut erosion formed by excess flow concentration |
| Erosion from Plunge | Erosion of channel bed by cascading water |
| Erosion from Convergent Jet | Erosion of streambed or banks fored by narrow constriction |
| Erosion of Bar Edge | Erosion of existing channel bar |
| Deposition Overbank | Deposition outside of channel |
| Deposition of Bar | Newly formed bar or expansion of existing bar by forced deposition |
| Deposition in Upstream Backwater | Deposition in ponded water behind structure |
| Scour Pool Formation | Pool formation by erosion of streambed |
